Manchester has no shortage of flat roofs. From the converted cotton mills of Ancoats to the commercial estates of Trafford Park, flat-roofed buildings are woven into the city's fabric, and most of them come with parapet walls. So if you're thinking about solar for one of these properties, the question of whether those perimeter walls will cause problems is a fair one.

Here's the short answer: parapet walls add complexity, but they're not a dealbreaker. With the right design, correct panel setback, and modern shading technology, a flat roof in Manchester with parapet walls is a solid candidate for solar.

Quick Take: Parapet walls cast shadows and restrict panel placement, but they also shield your array from wind and make roof access safer. Get the setback distances right, use panel-level optimisers where needed, and choose the right mounting system. Done properly, flat roof solar in Manchester performs well, even through our grey winters.

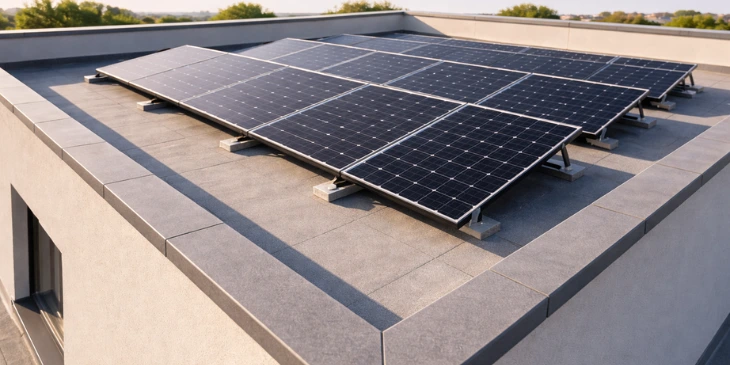

What Parapet Walls Are and Why They Matter for Solar

A parapet wall is the low vertical wall running around the edge of a flat roof, balcony, or raised terrace. They're on nearly everything in Manchester's built environment: Victorian terraces in Chorlton, post-war industrial units in Openshaw, newer apartment blocks in the city centre, and the old warehouses of Salford that have been standing since the cotton trade.

They serve real purposes. They act as a barrier at the roof edge, channel rainwater toward internal drains, provide fire separation between adjoining buildings, and conceal rooftop equipment from street level. For solar, they create a push-pull situation. On one hand, they act as a natural windbreak, reducing the forces on a panel array and cutting the ballast weight needed to hold it down. On the other, they cast shadows, and that shadow length shifts with the season and time of day.

In Manchester, the sun sits lower in the sky for longer stretches of the year than further south. That makes shading from parapet walls a more significant design consideration here than it would be in Bristol or London. It's not insurmountable, but it needs to be factored in from the start of any solar design.

Can You Install Solar Panels on a Flat Roof With Parapet Walls in Manchester?

Yes, and it's done regularly. Properties across south Manchester, north Manchester, and east Manchester with flat roofs and perimeter walls are fitted with panels all the time. The key is the design, not the presence of the wall.

The standard approach is mounting panels on the roof surface with enough clearance from the parapet to avoid shading during peak hours. The rule of thumb is 1.5 to 2 times the wall's height. A 1 metre wall means panels 1.5 to 2 metres back. Some designers push this to 3 times the wall height to account for low winter sun angles, which is worth considering at Manchester's latitude for south-facing walls.

It's also possible to use spanning beam systems, where aluminium beams bridge from one parapet to the other and panels sit on top, transferring load into the walls rather than the roof deck. The walls weren't built for this, so a structural engineer needs to sign off first.

One thing to be clear about: avoid bolting racking through the roof surface without proper waterproofing. As this installation guide explains, poorly sealed penetrations cause leaks and can fall outside building regulations. Use a ballasted system where possible, or ensure any penetrations are properly flashed and sealed.

Key Design Considerations for Solar on Flat Roofs With Parapet Walls

Setback and shading. The gap between panels and the parapet is the most important variable on a flat roof. Too close and panels spend winter mornings and afternoons in shadow. As a minimum, maintain 1.5 to 2 times the wall height as setback, with around 1 metre between panel rows to prevent row-to-row shading.

Tilt angle. Flat roof panels typically sit at 5 to 15 degrees, balancing energy output against wind resistance. Going flat at 0 degrees causes dirt and water build-up. Too steep increases uplift forces and the spacing needed between rows. Flat roofs also let you orient panels due south for maximum output, or use an east-west layout to spread generation across the day.

Wind loading. Manchester is not the calmest city in England. A parapet reduces edge uplift but isn't a substitute for proper wind load calculations. Follow the racking manufacturer's guidance and don't assume the wall does all the work.

Structural capacity. Ballasted systems add 20 to 30 kg per square metre from concrete blocks alone. Many older Manchester buildings weren't designed for this extra load, so a structural engineer's check is worth having, particularly on pre-1980s commercial buildings.

Drainage. Flat roofs with parapet walls drain internally through outlets or scuppers at the wall base. A solar installation must never block these. Careful layout planning avoids this entirely, and it matters particularly on city centre commercial rooftops where equipment is dense.

How Parapet Walls Affect Shading, Tilt, and Energy Output

Shading is where most of the performance risk lies. In a standard string inverter system, shading even one cell can drag the output of the whole string down well beyond what the shadow size suggests. Without panel-level optimisation, partial shading from a parapet wall can cause disproportionate losses.

At Manchester's latitude this problem is sharpest between October and March. December sun angles are shallow, and a south-facing parapet of just 1 metre can cast a shadow several metres across the roof at midday. Research into parapet shading suggests a 1 metre wall can cast a shadow roughly 3 metres long at certain sun angles, varying with latitude and season.

The practical fix is microinverters or DC power optimisers, which let each panel run independently so a shaded panel doesn't pull down its neighbours. Grouping panels nearest the parapet into separate strings from those further in also helps contain any losses.

Mounting panels vertically on the wall face is an option but rarely the right one. Output is 15 to 25% lower than an optimally tilted roof-mounted panel, and the wall bears increased wind stress when panels are fixed to it. For most Manchester properties, keeping panels on the roof surface and using the parapet as a windbreak is the approach that makes sense.

Mounting Options and Structural Requirements

Ballasted mounting is the default for flat roofs with parapet walls. Panels sit on racking weighted by concrete blocks, no roof penetrations required. Because the parapet cuts wind exposure, less ballast is typically needed. That said, the roof's structural capacity still needs verifying. This approach is discussed in more detail in this flat roof overview.

Mechanical (attached) mounting anchors racking into the roof structure below the membrane. The route for low parapets or exposed sites. Every penetration needs flashing and sealing properly.

Parapet-bridging beam systems span aluminium beams between parapets, lifting panels above the membrane with no ballast on the deck. Useful for narrower Manchester properties with limited roof space, but requires structural sign-off.

Roof stand frames elevate panels on taller legs, potentially lifting them above the shadow line on high parapets. Concentrated point loads mean structural checks are needed.

Vertical parapet mounts fix panels directly to the wall face. Output is significantly lower, wind stress on the wall increases, and engineering assessment is non-negotiable. A niche option, not a mainstream route.

For any flat roof in west Manchester or elsewhere across the city, get in touch with Solar Panels Manchester for a proper assessment.

Cost, Maintenance, and Safety on Manchester Flat Roofs

What it costs. Flat roof solar costs a little more than a pitched roof installation, mainly due to mounting hardware and, where needed, engineer fees. For a 4 kW system without battery storage, budget around £6,000 to £7,500, roughly £1,500 to £1,875 per kW. Flat roof labour is faster than working on a pitch, which softens the cost of the extra kit. Battery storage is a separate investment that significantly increases how much of your generation you actually use: see our battery storage page for how the numbers add up. The Smart Export Guarantee (SEG) also lets you earn from any surplus sent back to the grid.

Maintenance. Flat roof panels are easy to access, which is a genuine plus. The trade-off is that low-tilt panels accumulate dirt faster, and in Manchester's wet climate, organic growth can build up more quickly than in drier parts of the country. A clean-down once or twice a year is enough for most properties. Professional servicing runs £100 to £300 annually and covers cleaning, wiring checks, and a performance review. Keep parapet drains and scuppers clear and make sure panel supports don't block water flow. Our maintenance and repair team covers flat roof systems across the city.

Safety and planning. Most residential flat roof solar in Manchester falls under permitted development: panels must not project more than 60 cm above the roof's highest point and should sit 0.5 to 1 metre from the edge. Parapet walls can actually help here, because panels sitting below the wall line are hidden from street level, which tends to satisfy both the visual impact and setback conditions at once. Conservation areas and listed buildings are the exception; check with Manchester City Council if your property might qualify. A parapet of around 1 metre or more also functions as a guardrail equivalent under UK working at height regulations, making maintenance visits meaningfully safer. Older Manchester buildings sometimes have parapets of only 20 to 30 cm, which offer no fall protection and require separate safety measures.

Final Thoughts on Solar and Parapet Walls in Manchester

Parapet walls are a design variable, not a dealbreaker. They cast shadows, restrict panel placement, and on older Manchester buildings they raise structural questions worth investigating. But they also protect your array from wind, improve roof safety, and often make permitted development compliance easier by keeping panels out of sight.

The installations that perform well are the ones designed properly from the start: a thorough shade analysis, setback distances matched to the actual wall height, the right mounting system for the roof, and panel-level optimisers where some shading is unavoidable. That combination closes most of the gap between a flat roof with parapet walls and an ideal south-facing pitch.

Manchester's flat-roofed building stock, from converted warehouses to post-war terraces in Gorton and Moston, represents a real opportunity for solar. Whether you're in north, south, east, or west Manchester, get in touch with Solar Panels Manchester and we'll take an honest look at what your roof can do.

FAQs Solar on Parapet Walls

Can panels be fixed to the parapet wall itself rather than the roof surface?

It's possible but uncommon. Vertically mounted panels generate roughly 15 to 25% less energy annually than optimally tilted roof-mounted panels, and studies show they can increase wind stress on the wall by up to 40%. For most Manchester properties, the roof surface is where panels belong, with the parapet serving as a windbreak.

How far back from the parapet do panels need to be?

The standard guide is 1.5 to 2 times the parapet height. For a 1 metre wall, that's 1.5 to 2 metres back. Some designers push this to 3 times the wall height to account for low winter sun angles, which is particularly relevant in Manchester. A shade analysis from your installer gives you a more precise answer than any rule of thumb.

Will parapet wall shading significantly reduce my energy output?

It can, if the installation isn't designed around it. In a string inverter system, partial shading has an outsized effect. Modern microinverters and power optimisers largely resolve this by letting each panel perform independently. Good string design and proper setbacks keep overall performance strong even where some shading is unavoidable.

Do parapet walls offer any wind protection for solar panels?

They do. A parapet disrupts the airflow that creates uplift pressure at the roof edge and beneath the array. Where the wall is around 1 metre or more, uplift forces on nearby panels are reduced, which typically means a ballasted system needs less concrete weight. The wall reduces forces rather than eliminating them, so proper engineering is still required.

Which mounting system works best for a flat roof with parapet walls?

A ballasted system is the starting point for most Manchester flat roofs. Less ballast is needed because the parapet cuts wind exposure, and there are no roof penetrations. On exposed sites or with low parapets, a few mechanical fixings add security. Where roof load capacity is a concern, a parapet-bridging beam system moves the load into the building walls instead. The right answer depends on your specific roof: see our about page for how we approach assessments.

Does solar on a flat roof in Manchester need planning permission?

Generally no. Permitted development applies as long as panels don't project more than 60 cm above the roof's highest point and sit 0.5 to 1 metre from the edge. Conservation areas and listed buildings are the exception, and Manchester has both. Check with Manchester City Council if you're unsure. Parapet walls often make compliance easier since panels below the wall line are invisible from street level.

How often do flat roof panels need cleaning and servicing in Manchester?

More often than pitched roof panels, because the lower tilt means rain is less effective at clearing the surface. Once or twice a year is standard. Manchester's climate can accelerate organic growth on low-tilt systems, so a visual check between services is worthwhile. Professional maintenance runs £100 to £300 a year. Our maintenance and repair service covers flat roof systems across the city.
