How Shading Affects Solar Output - 2026 Manchester

Think your panels just need a bit of sunlight to do their job? Here's the reality: a shadow covering barely 3% of a single panel can cut power output by three quarters. Chimneys on Victorian terraces, mature trees in leafy suburbs, or that neighbouring building casting a long winter shadow can seriously hamper your system's performance.

Quick take: Manchester's low winter sun throws long shadows that can impact energy generation. Technologies like microinverters, power optimisers, and strategic panel positioning help you maintain strong output. This guide breaks down how shade hits your panels and what you can do to fight back.

How Shade and Shadows Affect Solar Performance

Direct sunlight is what solar panels are built for. Studies have shown that covering just one cell out of 36 (around 3% of a panel's surface) can knock power output down by up to 75%.

The reason comes down to how solar cells are wired. They're connected in series, like runners in a relay race. When one cell gets blocked by shade, it becomes the slowest runner, holding back everyone else. It's similar to water flowing through pipes: one blocked section restricts flow through the entire system.

Field data backs this up. Tree branches, chimneys, or overhead cables casting partial shade can reduce a typical residential system's annual energy yield by anywhere from 5 to 25%. When one panel in a string produces less current, it limits what the whole circuit can deliver.

Shade and Shadows in the UK

Manchester properties come with their own set of shadow challenges. The biggest factor? Seasonal sun position. During winter months, the sun sits much lower on the horizon, making objects cast far longer shadows. That tree or building that's fine in July could throw shade across your roof all through January.

Historic England points out that in winter the sun is much lower in the sky, which can create problems with far shadow. Installers need to check both nearby and distant obstacles that might cast shade at different times throughout the year.

Typical Manchester architecture brings its own shadow complications. Chimneys on red brick terraces in Chorlton, dormer windows in Didsbury, neighbouring properties in Ancoats, and tall trees around Northern Quarter all create sharp shadows on rooftops.

UK installation standards through the MCS scheme demand a proper shadow assessment for every solar installation. Installers measure the percentage of annual sunlight lost and calculate a "Shade Factor." A Shade Factor of 0.90, for instance, means you're losing 10% of your annual energy.

Here's what catches people off guard: shade can matter more than which way your roof faces. A south facing roof that's heavily shadowed for several hours daily might generate less energy than an east or west facing roof with clear sun. Getting rid of shade often trumps having perfect orientation.

Professional site surveys track shadow patterns across different hours and seasons, then design arrays that dodge problem areas. When shade can't be avoided, installers will suggest microinverters or power optimisers.

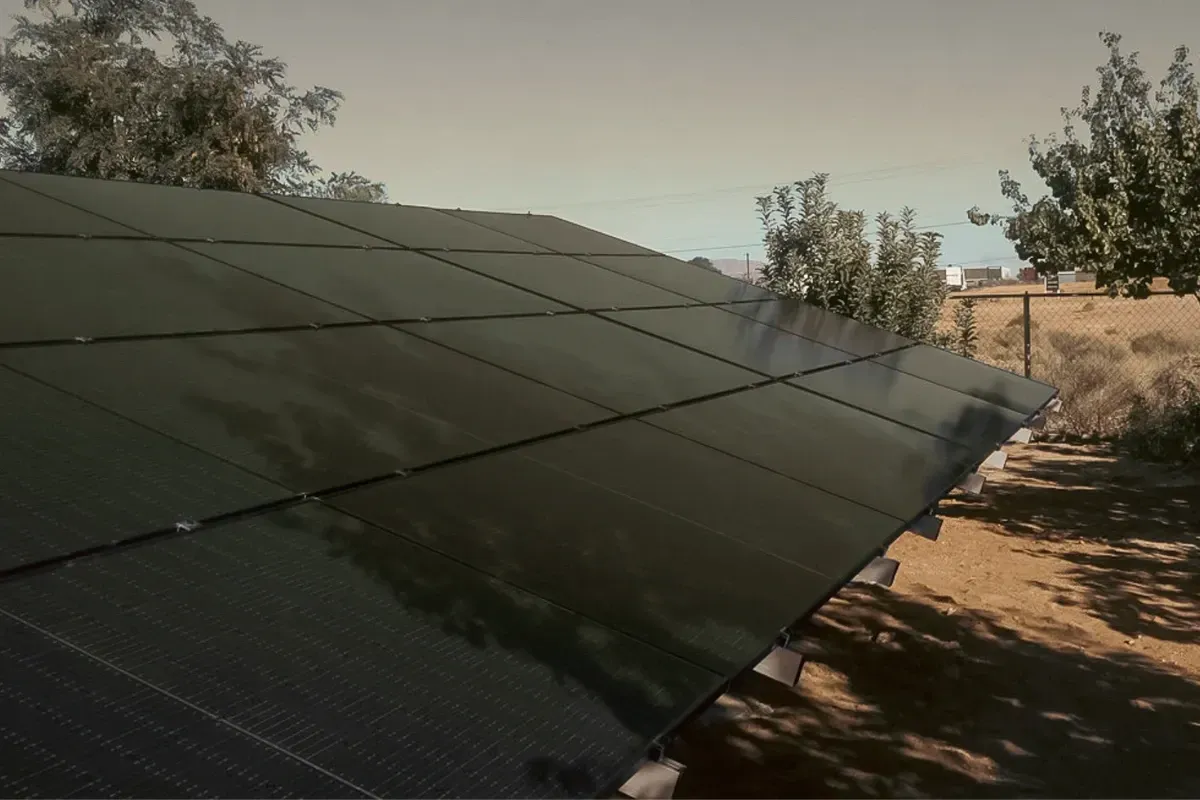

Partial Shade vs Full Shade: What Changes on Real Roofs

Not every shadow affects panels the same way. Partial shade happens when only part of a panel sits in shadow, like a small corner covered by a tree branch. Full shade means the entire panel is completely dark.

On actual Manchester roofs, you'll see partial shade far more often. Picture dappled light through leaves or the edge of a chimney casting shadow. When a panel is partially shaded, sunlight still hits the uncovered cells, so the panel keeps producing power, just at reduced levels.

Complete shade is a different story. A panel sitting in full shadow will generate virtually nothing whilst it's dark.

Modern panel design handles shade better than older models. Most modules today use techniques like half cut solar cells and multiple bypass diodes to contain shade effects. In older panels, blocking one cell in a series string could shut down that entire string. Current panels often divide cells into separate substrings.

Take half cut cell panels, which are wired as two parallel sections. If the top half sits in shade, the bottom half can still run at full capacity. The bottom line: partial shade lets panels keep producing with some losses, whereas full shade stops production cold.

Why Shade Hits Hard on String Systems (the "Weakest Link" Effect)

Standard solar installations wire panels together in series strings. A shaded panel can severely limit performance across all other panels in its string. This gets called the "Christmas lights effect" or "weakest link effect."

Just like one dodgy bulb in old Christmas lights could darken the whole string, one underperforming panel throttles the entire series circuit. In series wiring, current stays constant through all components. A shaded panel producing less current forces that lower current on every panel.

All your other panels might be capable of pushing 8 amps in full sun, but if one panel can only manage 4 amps due to shade, the whole string's current drops to 4 amps. Each solar cell acts like a link in a chain. The shaded cell becomes the weakest link.

At the module level, if one module in a series string gets shaded, it can tank power output across the board. There are ways to limit this damage. Grouping panels with similar shade patterns onto their own strings helps. That way, an unshaded string runs at full capacity whilst only the shaded string takes the hit.

How to Assess Shade on Your Roof

You need to know how much shade your roof gets before installing panels. Shade assessment means working out when and where shadows fall throughout the year.

Professional solar installers include shade analysis as standard practice during site surveys. They'll use tools like a solar pathfinder, SunEye, or 3D modelling software to predict the sun's path and shadows for each month.

They also account for seasonal shadow changes. A tall tree to the south might not cast shade in summer when the sun rides high but could heavily shadow the roof during winter months.

For homeowners wanting to gauge roof shade themselves, watch your roof at different times of day, particularly around 9 AM, noon, and 3 PM. Check different seasons too.

Solar panels should ideally get full sun from late morning through early afternoon. These are peak solar hours. A bit of shade very early or late has less impact, but shade during midday hours causes bigger losses.

Bypass Diodes: Advantages and Limitations

One key technology helping panels cope with shade is the bypass diode. Bypass diodes are small one way electrical components wired within a solar module that let current skip over shaded or damaged cells.

In a typical solar panel, groups of cells (usually 18 to 24 cells per group) each get protected by a bypass diode. If cells in that group become shaded and start blocking current, the bypass diode kicks in and routes electricity around that group. This stops shaded cells from acting like a roadblock.

Main advantages are safety and continued power generation. From a safety angle, a shaded cell can overheat, but a bypass diode prevents this. For power generation, bypass diodes ensure unshaded portions can keep producing energy.

However, bypass diodes have their limits. When a diode activates and bypasses a group of cells, you lose output from those cells. For example, in a 60 cell module with 3 diodes (each protecting 20 cells), if one set of 20 cells is heavily shaded, its diode bypasses that section.

So whilst the solar panel isn't completely dead, its maximum power drops proportional to the fraction bypassed.

Solutions for Shaded Roofs: Microinverters vs Optimisers vs String Inverters

When it comes to inverter technology, you've got three common options: traditional string inverters, power optimisers, and microinverters. For shaded roofs, the choice makes a real difference.

String Inverter: A single central inverter manages a whole string of panels. Solar panels link up in series. In this setup, shade on one solar panel can affect the entire string's output. That said, many modern string inverters now offer multiple MPPT inputs or include algorithms to handle shade better. The upside is simplicity and lower cost.

Microinverters: Microinverters are tiny inverters fitted on each solar panel. Each one converts DC to AC right at the panel with its own MPPT. The massive advantage is independence: each solar panel works on its own. If one solar panel gets shaded, it doesn't drag down the others.

The shaded solar panel's microinverter harvests what it can, whilst neighbouring panels' microinverters squeeze full power out of those panels. This makes microinverters extremely effective for roofs with patchy or irregular shade. They eliminate the weakest link problem.

Case studies show that in areas with frequent partial shade, systems using microinverters produced roughly 5 to 10% more energy than comparable string systems. In heavily shaded conditions, gains can hit 17% annual increase.

Power Optimisers: Optimisers are devices fitted at each solar panel that handle MPPT at panel level and send conditioned DC power to a central string inverter. In a shaded scenario, an optimiser adjusts the shaded solar panel's voltage and current to pull maximum output without dragging down the others.

The advantage is similar to microinverters: if one solar panel gets shaded, optimisers ensure the rest aren't held back. Optimisers generally cost less than microinverters whilst delivering most of the panel level benefits.

Testing showed about a 5% gain in partially shaded conditions with optimisers versus a traditional string setup. A heavily shaded or complex roof usually benefits most from microinverters or optimisers.

A traditional string inverter can work if shade is minimal or only happens during off peak times. Modern string inverters with multiple MPPT inputs can handle two sub arrays (perhaps one east facing, one west facing in areas like Salford Quays or Wythenshawe) reasonably well.

In Manchester, installers tend to recommend microinverters or optimisers if shade can't be avoided. The choice often comes down to economics and how severe the shade is. For a roof with serious shade issues, the investment is usually justified by energy gains.

It's always a case by case decision best made in consultation with a solar professional.

Final Thoughts on Solar Panels in Shade

Shade is the enemy of solar panels, but it's a problem that can be managed with careful planning, smart technology, and sometimes a good pair of pruning shears. Even small amounts of shade can have big impacts, so it's worth identifying and reducing obstructions wherever you can.

Start with a thorough site assessment. Know where shadows come from and when they appear. In Manchester, with our low winter sun, pay extra attention to long seasonal shadows. Whenever possible, design your solar panel layout to stay in sunshine during peak hours.

Thanks to modern technology, having some shade on your roof doesn't automatically rule out solar. Technologies like bypass diodes, microinverters, and optimisers greatly reduce the downsides. Bypass diodes ensure shade on part of a solar panel doesn't knock out the whole panel or string. Microinverters and optimisers let shaded panels be isolated so the rest of the system runs strong.

That said, these solutions aren't miracles. Any sunlight that's physically blocked won't generate power.

For residential and commercial solar projects across Manchester, from North Manchester to South Manchester, East Manchester to West Manchester, it often comes down to weighing costs and benefits. If a tree is heavily blocking the array, is it worth trimming or removing?

In many cases, spending more upfront on mitigation can deliver real gains and prevent long term energy loss hurting your return on investment. There's also the long term view: shade tends to increase over time as trees grow.

In short, panels and shade don't mix well, but with the right approach, they can coexist. Ideally, you eliminate shade through smart site selection and design. When you can't, you mitigate it with technology and maintenance.

Armed with this knowledge, Manchester homeowners and businesses can make informed decisions to get the most from solar installations. If you're ready to explore solar for your property and want expert guidance on managing shade, get in touch with our team or learn more about battery storage solutions and maintenance services. Join the solar swarm and power-the-house with clean energy that works for Manchester.

Solar Panels in Shade FAQs

Do panels work in the shade?

Yes, panels will work with partial shade, but output drops significantly. Solar panels produce maximum power in direct sunlight. In shaded conditions, panels generate only a fraction of their potential.

If you're running a traditional string inverter, one shaded solar panel can drag down performance across other panels in the same string. However, with proper system design using microinverters or optimisers, a shaded solar panel's impact can be isolated.

Solar panels don't generate power in complete darkness (at night or if fully shaded), but they can produce some electricity under diffuse light like cloudy skies. Just remember: more shade means less energy. Ideally, panels should sit in direct sun for most of the day.

Are there shadow tolerant panels or special panels for shady areas?

There's no solar panel that's immune to shade. If sunlight isn't reaching cells, those cells won't produce power. However, modern panels are built to handle partial shade better in how they manage it. Many panels now come with built in bypass diodes and split cell architecture, meaning shade on one part won't shut down the entire solar panel.

The best shade tolerant solution is really a well designed system using panel level electronics to manage shade (microinverters or optimisers) combined with smart solar panel placement to dodge shade. In short, all panels prefer sun, but today's panels cope with partial shade better than older models did.

How can I mitigate blocking on my solar system?

There are several strategies to tackle shade and reduce its impact.

Optimise solar panel placement. This is the first and most crucial step. Try to install solar panels where they'll get the most sun hours. During the site survey, identify obstacles and see if solar panels can be positioned away from shaded zones.

Trim or remove shade sources. If trees are causing serious shade and it's practical to trim them, this can dramatically boost solar output. Trimming branches or cutting down an overshadowing tree can eliminate the shade source entirely.

Use microinverters or power optimisers. These devices let each solar panel operate independently. Microinverters convert power at each solar panel, so one solar panel's shade won't affect others. Power optimisers perform panel level MPPT, achieving a similar result.

Implement multiple strings or MPPT inputs. If using a string inverter, make sure the system is wired to separate solar panels with different sun and shade profiles.
